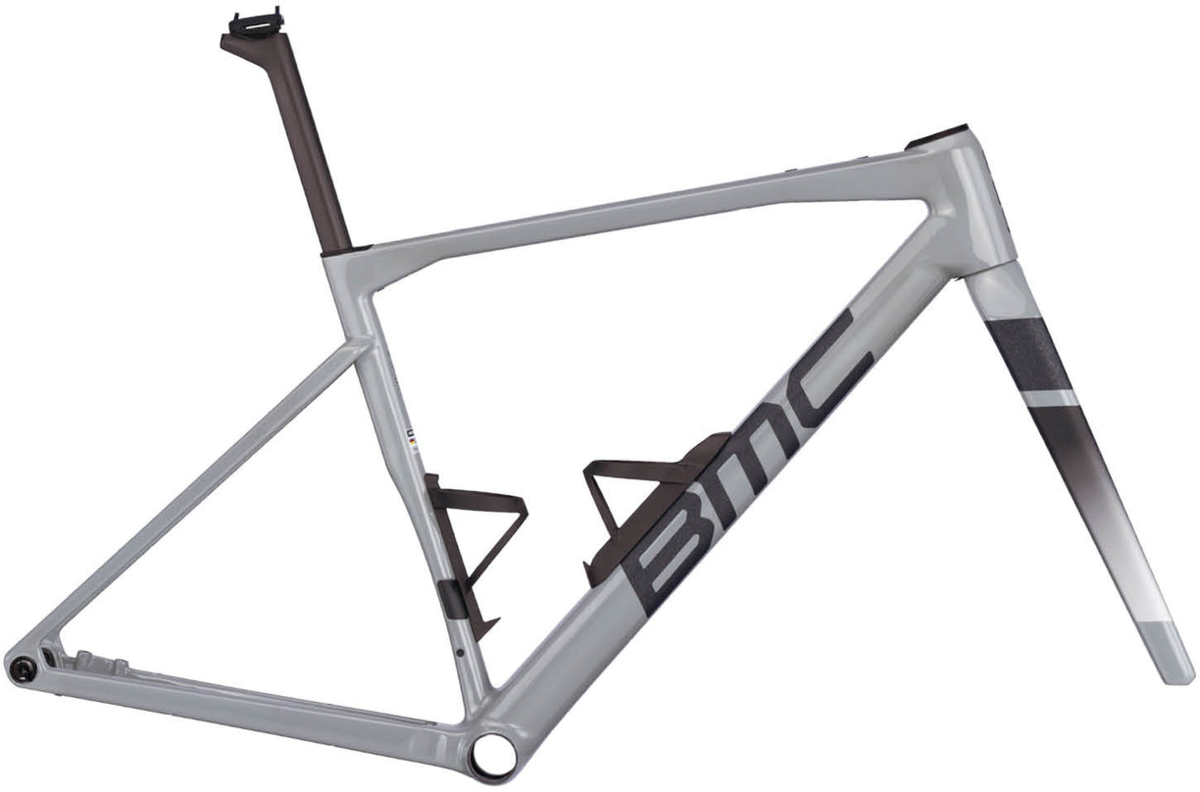

BMC Kaius 01 Frameset

BMC Kaius 01 Frameset
  • Color: Stone Grey
$4,499.00
Color: Stone Grey
Size: Select size
Wheel Size: 700c
Please select options Unavailable
This item is currently not available. Give us a call to see if we can find your item in our vendor's warehouse.

Details

With our Kaius 01 gravel race frameset, your dream bike build is one step closer.

Crafted with BMC's cutting-edge composite carbon technology, the Kaius 01 is the pinnacle gravel racing frameset. Its race-optimized geometry strikes the perfect balance of stiffness, lightness, and compliance. This ensures superior traction, stability, and climbing efficiency. Advanced carbon construction, Aerocore design, and ICS cable integration deliver exceptional performance and a sleek, aerodynamic profile.

Speed Unbound
The innovative premium carbon layup uses ultra high-module fibres for unmatched stiffness resulting in maximum power transfer and minimal weight. Kaius boasts our Tuned Compliance Concept Race Technology for a comfortable ride on rough surfaces.

Gravel Race Ready
Kaius: the fastest on gravel. The geometry features a longer reach to improve stability and increase traction. It's designed for 1x or 2x drivetrains and complies with SRAM Full Mount for UDH dropout or Hangerless Interface derailleurs.

Integrated Cockpit System (ICS)
The aesthetic simplicity and innovative functionality of the Integrated Cockpit is the epitome of Swiss engineering and design. ICS keeps shifter wires and brake lines in their place: out of sight.

Aerocore Design
Kaius comes in at the highest level of functional integration with our Aerocore design. This evolved solution integrates the bottle cages into the frame to optimize aerodynamic performance.

System Weight Limit: 120kg

Sizes:
Frame Size475154565861
Rider Height (cm) <166 166-174 172-180 178-186 184-192 >190
Reach (mm) 390 397 401 405 410 414
Stack (mm) 510 530 550 570 595 620
BB Drop (mm) 80 80 80 80 80 80
Crank Length (mm) 170 170 172.5 172.5 175 175
Fork Length (mm) 387 387 387 387 387 387
Fork Rake (mm) 50 50 45 45 45 45
Front Center (mm) 596 610 608 619 632 644
Head Tube (mm) 85 106 123 144 170 196
Head Tube Angle 71 71 72 72 72 72
Rear Center (mm) 420 420 420 420 420 420
Seat Angle 73 73 73 73 73 73
Seat Tube (mm) 428 452 468 493 513 533
Seatpost Length (mm) 280 320 360 360 400 400
Seatpost Offset (mm) 15 15 15 15 15 15
Standover Height (mm) 684 722 756 780 798 818
Top Tube (mm) 546 559 569 579 592 604
Trail (mm) 68 68 68 68 68 68
Wheelbase (mm) 1003 1017 1015 1026 1039 1051

Specs

Frame Kaius 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | UDH Dropout (Universal Derailleur Hanger) | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork Kaius 01 Premium Carbon | ICS Technology, Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Seatpost Kaius 01 Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible
Accessories & Extras Aerocore Bottle Cages | SRAM UDH hanger | High and low ICS top cones, 3x10mm spacers , 2x3mm spacers)

* Subject to change without notice.
