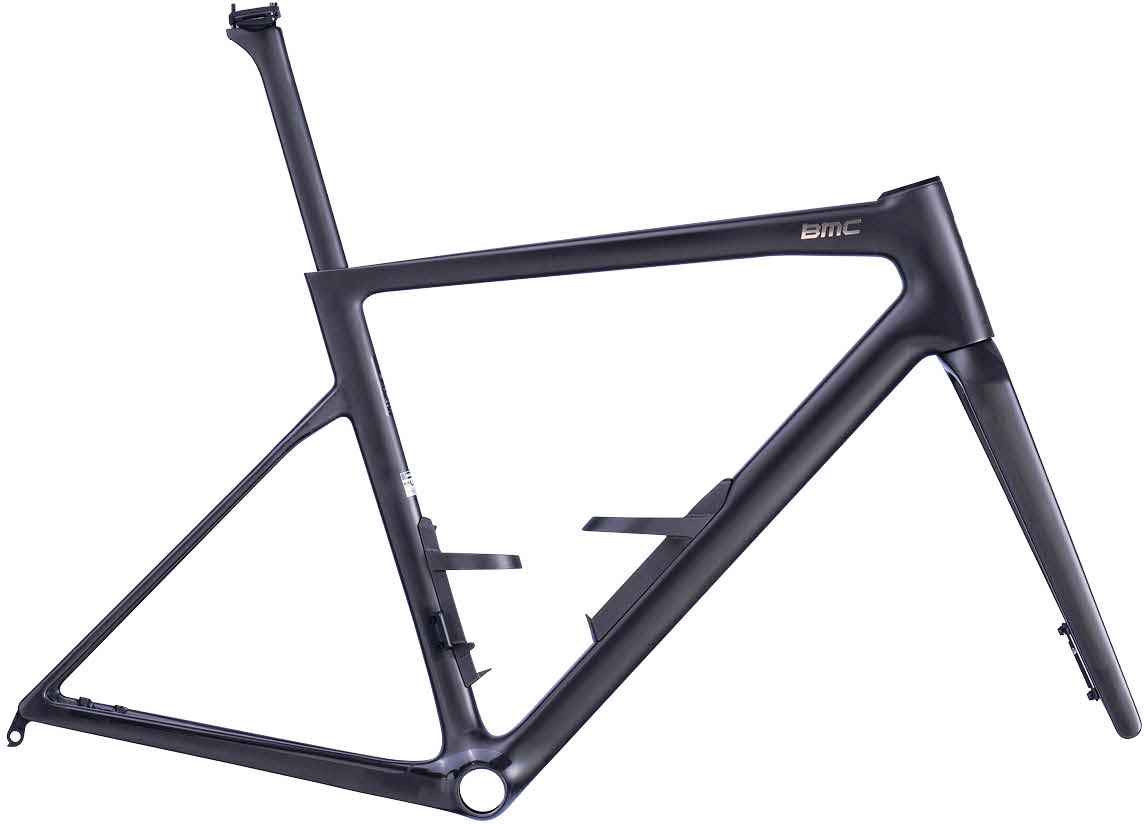

BMC Teammachine SLR 01 Frameset

BMC Teammachine SLR 01 Frameset
  • Color: Lightweight Carbon / Black
  • Color: Lightweight Carbon / White
  • Color: Carbon / Neon Red
$4,999.00
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable
This item is currently not available. Give us a call to see if we can find your item in our vendor's warehouse.

Details

Teammachine SLR 01 is a true BMC by definition. With its high stiffness score and the lightest carbon "01" layup, mountains found their match. More speed you ask? We built superior aerodynamics making it almost as fast as a Teammachine R 01. All this comes with no compromise: our Impec Lab engineers made sure we had a full BMC ride feel including TCC Race compliance, sharp handling and a bike geometry that fit your needs.

Sizes:
Size475154565861
Reach (mm) 367 377 386 392 401 409
Stack (mm) 506 530 550 565 584 608
Bar Drop (mm) 128 128 128 128 128 128
Bar Reach (mm) 68 68 68 68 68 68
Bar Width (mm) 400 / 436 400 / 436 400 / 436 400 / 436 400 / 436 400 / 436
BB Drop (mm) 69 69 69 69 69 69
Crank Length (mm) 170 170 172.5 172.5 175 175
Fork Length (mm) 368 368 368 368 368 368
Fork Rake (mm) 48 48 43 43 43 43
Front Center (mm) 568 586 589 599 614 630
Head Tube (mm) 110 130 145 165 184 210
Head Tube Angle 71.5° 71.5° 72.3° 72.3° 72.3° 72.3°
Rear Center (mm) 410 410 410 410 410 410
Seat Angle 73.5° 73.5° 73.5° 73.5° 73.5° 73.5°
Seat Tube (mm) 423 468 504 524 545 574
Seatpost Length (mm) 330 380 380 380 380 380
Seatpost Offset (mm) 15 15 15 15 15 15
Standover Height (mm) 717 752 779 797 817 843
Stem Angle -12.5° -12.5° -12.5° -12.5° -12.5° -12.5°
Stem Length (mm) 90 100 100 110 110 120
Top Tube (mm) 517 534 549 559 574 589
Trail (mm) 63 63 63 63 63 63
Wheelbase (mm) 968 986 989 1000 1015 1030
Sizes:
SizeRider Height (cm)
47 <166
51 166-174
54 172-180
56 178-186
58 184-192
61 >190

Specs

Frame Teammachine SLR 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork Teammachine SLR 01 Premium Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 43mm offset Size 54-61
Seatpost Teammachine SLR 01 Premium Carbon Aero Shaped Seatpost | 10mm Offset
Accessories & Extras Aerocore Bottle Cages | Shimano Direct Mount RD hanger and Classic SRAM/Shimano RD hanger | High and low ICS top cones, 3x10mm spacers , 2x3mm spacers)

* Subject to change without notice.
